S&W M41 Factory Recoil and Mainspring dimensions

4 posters

Go down

S&W M41 Factory Recoil and Mainspring dimensions Empty S&W M41 Factory Recoil and Mainspring dimensions

Post by Sa-tevp Wed Aug 10, 2022 8:43 pm

I recently started to have eye problems and went to shooting my 1978 S&W M41 again with a Clark barrel and a red dot. Adding a Buffer Technologies recoil buffer helped performance too.

Since my pistol has been tuned and I wanted a few reference points to put in my notebook, I ordered a new factory recoil spring and mainspring to measure.

New Factory Recoil Spring

4.67" long
0.0285" thick wire
35 coils
0.0268"/0.270" diameter ends

New Factory Mainspring

2.08" long
0.0475" thick wire
23.5 coils with rough ends
0.270" diameter ends.

From past notes a Wolff Reduced Power spring pack has these springs:

6.0# - 0.027" spring thickness
6.5# - 0.028" spring thickness
7.0# - 0.029" spring thickness

My M41 runs very well on CCI SV and Eley Club with a Wolff recoil spring with these dimensions:

4.55" long
0.029" think wire
36 coils
0.272"/0.277" coil ends

My gunsmith tuned mainspring doesn't match the factory spring. Contact KC Kustom Creations for more information on reliability tuning.
Sa-tevp
Sa-tevp

Posts : 929
Join date : 2013-07-20
Location : Georgia

Slamfire likes this post

Back to top Go down

S&W M41 Factory Recoil and Mainspring dimensions Empty Re: S&W M41 Factory Recoil and Mainspring dimensions

Post by Slamfire Tue Aug 23, 2022 5:44 pm

Thanks for the measurements!

I am of the opinion that shooters ought to be changing their recoil springs more often. The things take a set, and I am sure they lose strength as they contract and expand. I have asked M41 shooters, who are having failures to eject, or failures to feed, when was the last time they replaced their recoil spring, and the universal answer that comes back is "never".  That spring is essential to the timing of the slide.

While I did not take measurements, I was pretty sure the function problems I was having with my M46

S&W M41 Factory Recoil and Mainspring dimensions R6qrx7C


were due to the recoil spring. It was the original. And when I received my new Wolff spring, I think I was right!


S&W M41 Factory Recoil and Mainspring dimensions LV7Wg0a

Slamfire

Posts : 223
Join date : 2016-04-18

SonOfAGun likes this post

Back to top Go down

S&W M41 Factory Recoil and Mainspring dimensions Empty Re: S&W M41 Factory Recoil and Mainspring dimensions

Post by shanneba Thu Aug 25, 2022 12:48 pm

I measured my 1980ish Model 41 recoil spring; I do not think it was ever modified or replaced.
Wolf Springs shows the factory spring as "Factory Standard.: 7.5 Lb."
The 0.030 spring wire diameter seems to match with the above Wolf spring wire diameter and rates.
I recently ran about 430-450 rounds of CCI Std Velocity through it.
The last two magazines (with 5 rounds loaded) did have a failure to eject on the first round, the slide closed on the fired case with it sideways to the barrel.
I have not shot it since I cleaned it afterward.

3.365" long
0.030" thick wire
28 coils one end is closed and the other open
0.270" diameter ends

shanneba

Posts : 308
Join date : 2021-10-16
Age : 67
Location : Indiana

Back to top Go down

S&W M41 Factory Recoil and Mainspring dimensions Empty Re: S&W M41 Factory Recoil and Mainspring dimensions

Post by shanneba Mon Aug 29, 2022 2:06 pm

I ordered a Wolf Factory Standard 7.5 Lb Model 41 spring Friday.

I also have a S&W Model 41 recoil spring I ordered from Brownell's last winter.

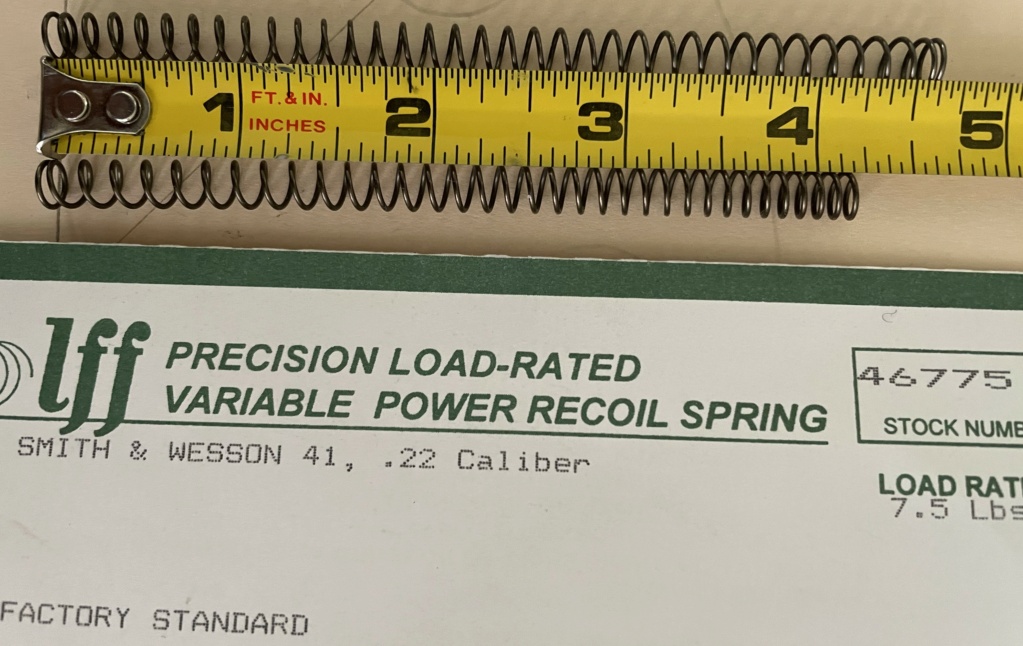

top spring in photo
S&W Factory spring  (part # 940066820)
~ 4 5/8"
0.029 wire
36 coils
0.270 od

Bottom spring in photo
Wolf 7.5 Lb spring
~ 4 3/16"
0.031 wire
36 coils (22 equally spaced and 14 closer together)
~0.265 od

My recoil guide rod measures ~0.193 (the 0.265 OD Wolf spring with an ID at ~0.203 slipped right on)

S&W M41 Factory Recoil and Mainspring dimensions Img_0610

shanneba

Posts : 308
Join date : 2021-10-16
Age : 67
Location : Indiana

Back to top Go down

S&W M41 Factory Recoil and Mainspring dimensions Empty Re: S&W M41 Factory Recoil and Mainspring dimensions

Post by Wobbley Mon Aug 29, 2022 7:06 pm

The Wollf spring is a “Variable pitch” spring.  The advantage is that there is less “preload” at the installed max dimension.  The fine pitch will compress “solid” first.  So it ends up as a “variable spring rate spring”.
Wobbley
Wobbley
Admin

Posts : 4520
Join date : 2015-02-13
