Mixing your own MoS2 (molybdenum disulfide)

Post by Bullseye_Stan on 2/12/2018, 7:30 am

Greetings,

Don't know how many do this, or have an inclination to do this, but here is some of what I've found along the way.  Moly (MoS2) is a good lubricant for precision firearms.  However, applying it can be messy and sometimes not so exact.

Here is one way to reduce the mess and provide a more careful application:

Brownells 0.5 oz needle oiler bottles:

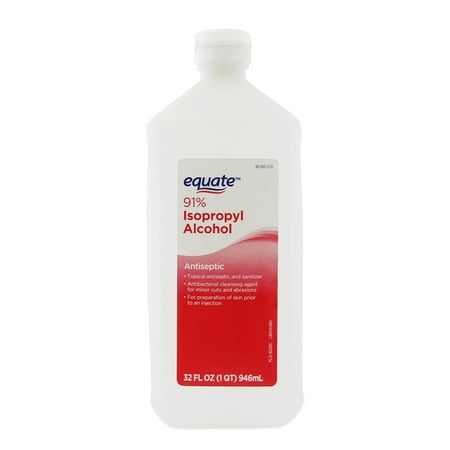

91% Isopropyl Alcohol (Isopropanol):



and MoPo 1.5 micron Molybnemum disulfide powder (via Ebay) - other high purity MoS2 powders will work:


I mix 1/3 by volume MoS2 with 2/3 by volume 91% Isopropyl alcohol - shake well.  It dries quickly, adheres well, and has some penetrating properties.  Other concentrations (1/4 by volume of MoS2 with 3/4 91% Iso) may work better for different uses.  The main bit of information from all this is that the 91% Iso alcohol seems to work much better than other solvents I've used, such as Naptha (lighter fluid) or mineral spirits (paint thinner) to keep the MoS2 in suspension and leave no residue.

Bullseye_Stan

Posts : 266
Join date : 2017-06-11
Location : Hampton Roads, VA

Back to top Go down

Re: Mixing your own MoS2 (molybdenum disulfide)

Post by jglenn21 on 2/12/2018, 8:22 am

stuff is great to use on the primer slides found on various progressive reloaders..  use it on all my Dillons
avatar
jglenn21

Posts : 1322
Join date : 2015-04-07
Age : 70
Location : monroe , ga

Back to top Go down

Re: Mixing your own MoS2 (molybdenum disulfide)

Post by Chris Miceli on 2/12/2018, 8:26 am

http://www.neconos.com/item/MOLY-SLIDE-33
avatar
Chris Miceli

Posts : 2189
Join date : 2015-10-27
Location : Northern Virginia

Back to top Go down

Re: Mixing your own MoS2 (molybdenum disulfide)

Post by JNW1 on 2/12/2018, 8:41 am

The best place to buy small needle oiler bottles is your local craft store. I got a pack of them at Michael’s Crafts for $1.50.
Jeff

JNW1

Posts : 23
Join date : 2017-12-21

Back to top Go down

Re: Mixing your own MoS2 (molybdenum disulfide)

Post by Bullseye_Stan on 2/12/2018, 9:13 am

I'll check out those oiler bottles at Michael's crafts.  The primary benefit I've found from the MoS2 in alcohol is that it leaves no (oil) residue, dries quickly, and is a dry film lubricant only containing MoS2.  I haven't tried it out for plastic magazines, but will.  I've used it a bit for reloading (on my old Lee turret press) which helps keep the primer arm assembly from being ejected.

Like most things, it's not universal, but does have it's uses.  Of course, there are other ways to do this same thing.  I've used a product called 'Dri Slide Bike Aid' which is intended to lubricate (bicycle) cables and is a MoS2 suspension in a petroleum solution.  Beemans (years ago) used to sell a similar product for air guns.

Part of my tinkering was from using Bullseye powder in my 45, which is dirty.  Oiling the gun just seems to attract powder residue.  The MoS2 cuts down on some of that and the slide seems to cycle with less effort.

Bullseye_Stan

Posts : 266
Join date : 2017-06-11
Location : Hampton Roads, VA

Back to top Go down

Re: Mixing your own MoS2 (molybdenum disulfide)

Post by Chris Miceli on 2/12/2018, 9:34 am

Bullseye_Stan wrote:I'll check out those oiler bottles at Michael's crafts.  The primary benefit I've found from the MoS2 in alcohol is that it leaves no (oil) residue, dries quickly, and is a dry film lubricant only containing MoS2.  I haven't tried it out for plastic magazines, but will.  I've used it a bit for reloading (on my old Lee turret press) which helps keep the primer arm assembly from being ejected.

Like most things, it's not universal, but does have it's uses.  Of course, there are other ways to do this same thing.  I've used a product called 'Dri Slide Bike Aid' which is intended to lubricate (bicycle) cables and is a MoS2 suspension in a petroleum solution.  Beemans (years ago) used to sell a similar product for air guns.

Part of my tinkering was from using Bullseye powder in my 45, which is dirty.  Oiling the gun just seems to attract powder residue.  The MoS2 cuts down on some of that and the slide seems to cycle with less effort.
a tighter fitting slide to frame will keep that out, as well as a well lubricated firearm. i recommend FP10
avatar
Chris Miceli

Posts : 2189
Join date : 2015-10-27
Location : Northern Virginia

Back to top Go down

Re: Mixing your own MoS2 (molybdenum disulfide)

Post by Wobbley on 2/12/2018, 10:11 am

For those that don’t want to mess with it:  https://www.drislide.com/collections/weapons-lubricant-1/products/drislide-weapons-lubricant

MoS2 is actually somewhat abrasive as a lubricant.  It’s shape allows for sliding to take place.  Industrially, it is used primarily in high contact stress environments usually as a supplement to grease but seldom in ball bearings.  Guns, generally, aren’t high contact stress systems so there isn’t a huge advantage to Moly.  There is a disadvantage in that it stains clothing and skin and is impossible to clean.
avatar
Wobbley

Posts : 1438
Join date : 2015-02-12

Back to top Go down

Re: Mixing your own MoS2 (molybdenum disulfide)

Post by jmdavis on 2/12/2018, 11:54 am

I use Neco Moly on the sear of the Pardini. I had a very bad experience with grease (tetra) on the slide and rails of my wad gun. It was an alibi magnet.

I agree that Bullseye can be dirty, but I have no object to cleaning guns. If it takes some elbow grease to keep my wad gun accurate and dependable, so be it.
avatar
jmdavis

Posts : 1223
Join date : 2012-03-23
Location : Virginia

Back to top Go down

Re: Mixing your own MoS2 (molybdenum disulfide)

Post by Bullseye_Stan on 2/12/2018, 1:08 pm

Wobbley wrote:For those that don’t want to mess with it:  https://www.drislide.com/collections/weapons-lubricant-1/products/drislide-weapons-lubricant

MoS2 is actually somewhat abrasive as a lubricant.  It’s shape allows for sliding to take place.  Industrially, it is used primarily in high contact stress environments usually as a supplement to grease but seldom in ball bearings.  Guns, generally, aren’t high contact stress systems so there isn’t a huge advantage to Moly.  There is a disadvantage in that it stains clothing and skin and is impossible to clean.

I have read that the Dry-Slide weapons lubricant contains graphite along with moly (http://www.uniquetek.com/product/T1247).  For some firearms (such as Hammerli), that is a problem.  One of the benefits to mixing up concoctions is having a bit better control as to what goes into them.  Thin films of high purity MoS2 work best and do not have abrasive properties, but the moly film can be subject to decomposition from humid air over time.  Feinwerkbau has used moly as a 'permanent' lubricant, but does not endorse or advocate the owner reapplying (or stripping and applying) moly.  I would not consider moly a suitable lubricant for a Bullseye pistol shot in the pouring rain - there is no 'dry' in that environment.

Bullseye_Stan

Posts : 266
Join date : 2017-06-11
Location : Hampton Roads, VA

Back to top Go down
